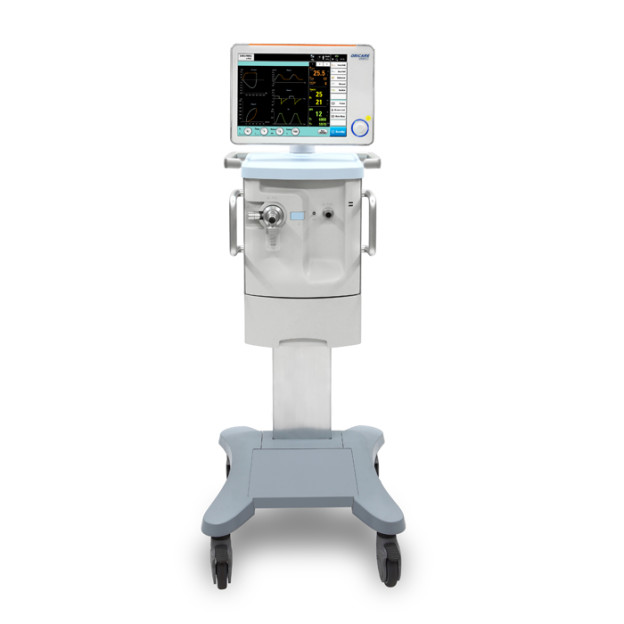

Save up to 80% on pre-owned Oricare Ventilator
Request a Quote for this product now.
- Pneumatically driven and electronically controlled
ventilation - Suitable for children and adults
- Easy control of user interface by touch screen &
navigator wheel - Sensitive adjustable flow trigger and pressure trigger
Lung mechanics monitoring and flow loops - 15”TFT LCD color screen
- Synchronized nebulizer
- Inspiratory and expiratory hold
- Manual inspiration
- Smart suction
- Built-in battery (≥1hour) or optional extended
batteries (≥2hours operation) - Easy to position ergonomic Trolley available with
lockable drawer and auxiliary AC outlets - Easily removeable and sterilizeable exhalation
valve module
Modes of Ventilation
- Pressure Controlled (PCV), Assist/Control
- Pressure Regulation Volume Controlled (PRVC),
- Assist/Control
- Synchronized Intermittent Mandatory
- Ventilation, SIMV(VCV) + PSV, SIMV(PCV) + PSV,
- SIMV(PRVC) + PSV
- Spontaneous Ventilation (SPONT/CPAP) + PSV
- Bi Level Ventilation (BIVENT/APRV) + PSV
- Non-invasive Ventilation (NIV/CPAP + PSV,
- NIV/PCV)
- Volume Controlled (VCV), Assist/Control
Parameters and Ranges
- Tidal volume: 20-2500ml
- Respiratory rate: 1-120bpm
- Inspiration time:0.2-9s
- Inspiratory pause time: 0-4s
- Tslope : 0-2s
- FiO2: 21%~100%
- PEEP: 0-50cmH2O
- CPAP: 2-20cmH2O
- Psupport: 0-90cmH2O
- Pinsp: 5-90cmH2O – USA
0-100cmH2O – International - Esens: 5%-80%
- Flow patterns: square, decelerating
- Inspiratory hold
- Expiratory hold
- Nebulizer: 30 or 45 minutes
- Auto tube compensation
- Compliance compensation
- Graphical trends
- Nurse call
Monitoring
- Pressure values: Pmin, Pplat, Pmean, Ppeak, PEEP
- Volume/Flow values: VTI, VTE, MV, MVspont, Leak%
- Loops: Flow – Pressure, Pressure – Volume,
- Flow – Volume
- FiO2
- Optional etCO2
Alarms
- MV high, MV low, Circuit disconnect, Paw high, Paw low, Continuous airway pressure high, VTi high, fspont high, Tapnea, FiO2 high, FiO2 low, etCO2 high, etCO2 low, Power supply failure, Battery low, Battery exhausted, Air supply failure, O2 supply failure, PEEP low.
Operating Conditions
- Gas supply: O2, Air, 200kPa -650kPa (29-94PSI)
- Power supply: 100-240V, 50-60Hz
- Temperature: 10-40 (Operation)
- -20-60℃(Storage)
- Relative humidity: 5-95%, non-condensing
(Operation) - ≤95%, non-condensing (Storage)
- Atmospheric pressure: 500hPa-1060hPa
(Operation&Storage) - Communication interfaces: RS232, VGA, USB, Rj45
- Dimensions (H×W×D): 624x774x1410mm
Standards
- UL/IEC 60601-1, IEC 60601-1-2, IEC 60601-2-12, EN 794-1
